Nenngröße
|

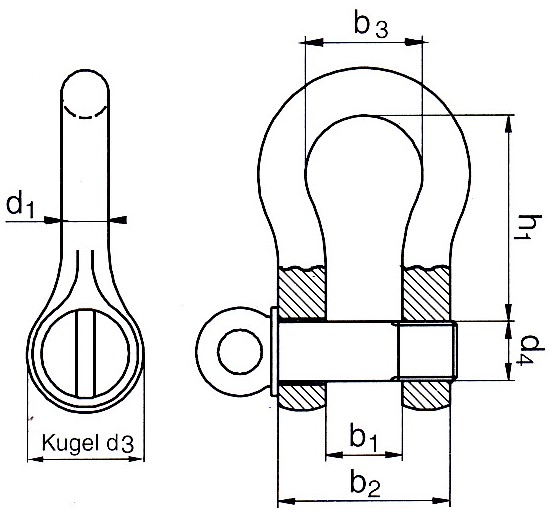

Maße gemäß Zeichnung (mm)
|
Tragfähigkeit
|
ca. Gewicht
|
Verpackungseinheit
|
|
Zoll
|
b1
|
b2
|
b3
|
d1
|
d3
|
d4
|
h1
|
t
|
kg
|
Stück
|
|
1/4”
|
12
|
25
|
19
|
6
|
17
|
8
|
28
|
0,5
|
0,05
|
10
|
|
5/16”
|
13
|
29
|
21
|
8
|
10
|
10
|
31
|
0,75
|
0,08
|
10
|
|
3/8”
|
16
|
36
|
26
|
10
|
26
|
12
|
36
|
1,0
|
0,14
|
10
|
|
7/16”
|
18
|
40
|
29
|
11
|
28
|
14
|
42
|
1,5
|
0,22
|
10
|
|
1/2”
|
21
|
47
|
33
|
13
|
30
|
16
|
48
|
2,0
|
0,33
|
10
|
|
5/8”
|
27
|
59
|
43
|
16
|
42
|
20
|
60
|
3,25
|
065
|
10
|
|
3/4”
|
32
|
70
|
51
|
19
|
48
|
22
|
71
|
4,75
|
0,97
|
10
|
|
7/8”
|
36
|
80
|
58
|
22
|
57
|
27
|
84
|
6,5
|
1,46
|
10
|
|
1”
|
43
|
93
|
68
|
25
|
62
|
28
|
95
|
8,5
|
2,39
|
1
|
|
1 1/8”
|
46
|
104
|
74
|
29
|
69
|
33
|
103
|
9,5
|
3,15
|
1
|
|
1 1/4”
|
52
|
116
|
82
|
32
|
78
|
36
|
119
|
12,0
|
4,32
|
1
|
|
1 3/8”
|
57
|
127
|
92
|
35
|
86
|
39
|
133
|
13,5
|
5,67
|
1
|
|
1 1/2”
|
60
|
136
|
98
|
38
|
94
|
42
|
146
|
17,0
|
7,79
|
1
|
|
1 3/4”
|
73
|
161
|
127
|
44
|
112
|
52
|
178
|
25,0
|
12,51
|
1
|
|
2”
|
83
|
185
|
146
|
51
|
135
|
60
|
197
|
35,0
|
18,5
|
1
|
|
2 1/2”
|
106
|
232
|
184
|
63
|
158
|
72
|
267
|
55,0
|
37,58
|
1
|
|
|
|
|
|
|
Schäkel hochfest geschweifte Form C mit Bolzen, Mutter und Splint
|
|
|
|
|
|
|
Nenngröße
|

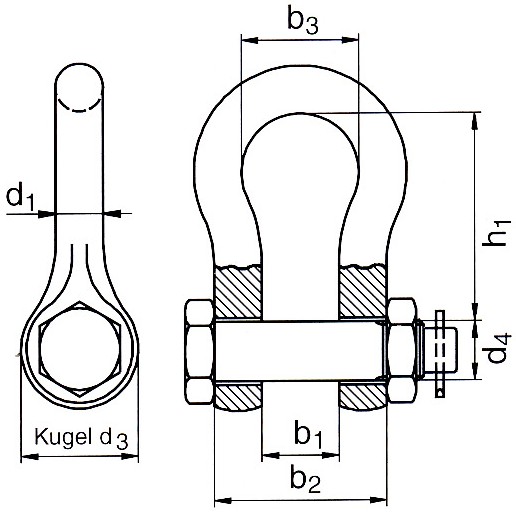

Maße gemäß Zeichnung (mm)
|
Tragfähigkeit
|
ca. Gewicht
|
Verpackungseinheit
|
|
Zoll
|
b1
|
b2
|
b3
|
d1
|
d3
|
d4
|
h1
|
t
|
kg
|
Stück
|
|
1/4”
|
12
|
25
|
19
|
6
|
17
|
8
|
28
|
0,5
|
0,07
|
10
|
|
5/16”
|
13
|
29
|
21
|
8
|
10
|
10
|
31
|
0,75
|
0,10
|
10
|
|
3/8”
|
16
|
36
|
26
|
10
|
26
|
12
|
36
|
1,0
|
0,18
|
10
|
|
7/16”
|
18
|
40
|
29
|
11
|
28
|
14
|
42
|
1,5
|
0,25
|
10
|
|
1/2”
|
21
|
47
|
33
|
13
|
30
|
16
|
48
|
2,0
|
0,37
|
10
|
|
5/8”
|
27
|
59
|
43
|
16
|
42
|
20
|
60
|
3,25
|
0,71
|
10
|
|
3/4”
|
32
|
70
|
51
|
19
|
48
|
22
|
71
|
4,75
|
1,27
|
10
|
|
7/8”
|
36
|
80
|
58
|
22
|
57
|
27
|
84
|
6,5
|
1,78
|
10
|
|
1”
|
43
|
93
|
68
|
25
|
62
|
28
|
95
|
8,5
|
2,52
|
1
|
|
1 1/8”
|
46
|
104
|
74
|
29
|
69
|
33
|
109
|
9,5
|
3,53
|
1
|
|
1 1/4”
|
52
|
116
|
82
|
32
|
78
|
36
|
119
|
12,0
|
5,04
|
1
|
|
1 3/8”
|
57
|
127
|
92
|
35
|
86
|
39
|
133
|
13,5
|
6,84
|
1
|
|
1 1/2”
|
60
|
136
|
98
|
38
|
94
|
42
|
146
|
17,0
|
8,78
|
1
|
|
1 3/4”
|
73
|
161
|
127
|
44
|
112
|
52
|
178
|
25,0
|
14,09
|
1
|
|
2”
|
83
|
185
|
146
|
51
|
127
|
55
|
197
|
35,0
|
20,90
|
1
|
|
2 1/2”
|
105
|
232
|
184
|
64
|
152
|
70
|
267
|
55,0
|
39,90
|
1
|
|
|
|
|
Alle Angaben sind Circa-Werte und können gegebenenfalls abweichen.
