Nenngröße
|

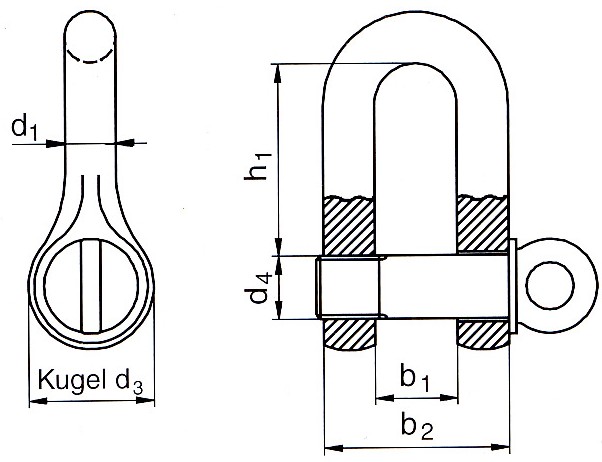

Maße gemäß Zeichnung (mm)
|
Tragfähigkeit
|
ca. Gewicht
|
Verpackungseinheit
|
|
Zoll
|
b1
|
b2
|
d1
|
d4
|
h1
|
d3
|
t
|
kg
|
Stück
|
|
1/4”
|
12
|
26
|
6
|
8
|
22
|
17
|
0,5
|
0,05
|
10
|
|
5/16”
|
13
|
29
|
8
|
10
|
26
|
21
|
0,75
|
0,08
|
10
|
|
3/8”
|
16
|
36
|
10
|
12
|
31
|
26
|
1,0
|
0,13
|
10
|
|
7/16”
|
18
|
40
|
11
|
14
|
36
|
28
|
1,5
|
0,19
|
10
|
|
1/2”
|
21
|
47
|
13
|
16
|
41
|
30
|
2,0
|
0,31
|
10
|
|
5/8”
|
27
|
59
|
16
|
20
|
51
|
42
|
3,25
|
0,55
|
10
|
|
3/4”
|
32
|
70
|
19
|
22
|
60
|
48
|
4,75
|
0,96
|
10
|
|
7/8”
|
36
|
80
|
22
|
27
|
71
|
57
|
6,5
|
1,41
|
10
|
|
1”
|
43
|
93
|
25
|
28
|
81
|
62
|
8,5
|
2,03
|
1
|
|
1 1/8”
|
46
|
104
|
29
|
33
|
90
|
69
|
9,5
|
2,97
|
1
|
|
1 1/4”
|
52
|
116
|
32
|
36
|
100
|
78
|
12,0
|
4,01
|
1
|
|
1 3/8”
|
57
|
127
|
35
|
39
|
113
|
86
|
13,5
|
5,4
|
1
|
|
1 1/2”
|
60
|
136
|
38
|
42
|
124
|
94
|
17,0
|
7,29
|
1
|
|
1 3/4”
|
73
|
161
|
44
|
52
|
146
|
112
|
25,0
|
11,25
|
1
|
|
2”
|
83
|
185
|
51
|
60
|
171
|
135
|
35,0
|
16,2
|
1
|
|
2 1/2”
|
106
|
232
|
63
|
72
|
203
|
158
|
55,0
|
33,3
|
1
|
|
|
|
|
|
|
Schäkel hochfest gerade Form C mit Bolzen, Mutter und Splint
|
|
|
|
|
|
|
Nenngröße
|

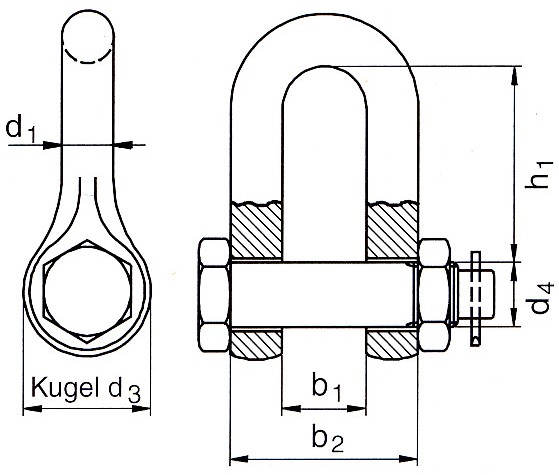

Maße gemäß Zeichnung (mm)
|
Tragfähigkeit
|
ca. Gewicht
|
Verpackungseinheit
|
|
Zoll
|
b1
|
b2
|
d1
|
d4
|
h1
|
d3
|
t
|
kg
|
Stück
|
|
1/4”
|
12
|
26
|
6
|
8
|
22
|
17
|
0,5
|
0,06
|
10
|
|
5/16”
|
13
|
29
|
8
|
10
|
26
|
21
|
0,75
|
0,10
|
10
|
|
3/8”
|
16
|
36
|
10
|
12
|
31
|
26
|
1,0
|
0,15
|
10
|
|
7/16”
|
18
|
40
|
11
|
14
|
36
|
28
|
1,5
|
0,22
|
10
|
|
1/2”
|
21
|
47
|
13
|
16
|
41
|
30
|
2,0
|
0,34
|
10
|
|
5/8”
|
27
|
59
|
16
|
20
|
51
|
42
|
3,25
|
0,70
|
10
|
|
3/4”
|
32
|
70
|
19
|
22
|
60
|
48
|
4,75
|
1,18
|
10
|
|
7/8”
|
36
|
80
|
22
|
27
|
71
|
57
|
6,5
|
1,64
|
10
|
|
1”
|
43
|
93
|
25
|
28
|
81
|
62
|
8,5
|
2,41
|
1
|
|
1 1/8”
|
46
|
104
|
29
|
33
|
90
|
69
|
9,5
|
3,27
|
1
|
|
1 1/4”
|
52
|
116
|
32
|
35
|
100
|
78
|
12,0
|
4,59
|
1
|
|
1 3/8”
|
57
|
127
|
35
|
38
|
113
|
86
|
13,5
|
6,0
|
1
|
|
1 1/2”
|
60
|
136
|
38
|
42
|
124
|
94
|
17,0
|
8,33
|
1
|
|
1 3/4”
|
73
|
161
|
44
|
50
|
146
|
112
|
25,0
|
12,83
|
1
|
|
2”
|
83
|
185
|
51
|
55
|
171
|
127
|
35,0
|
19,3
|
1
|
|
2 1/2”
|
106
|
232
|
64
|
70
|
203
|
152
|
55,0
|
34,5
|
1
|
|
3”
|
127
|
279
|
76
|
82
|
216
|
200
|
85,0
|
60
|
1
|
|
|
|
|
